XD331 Precision Voltage-to-Frequency Converters

Introduction

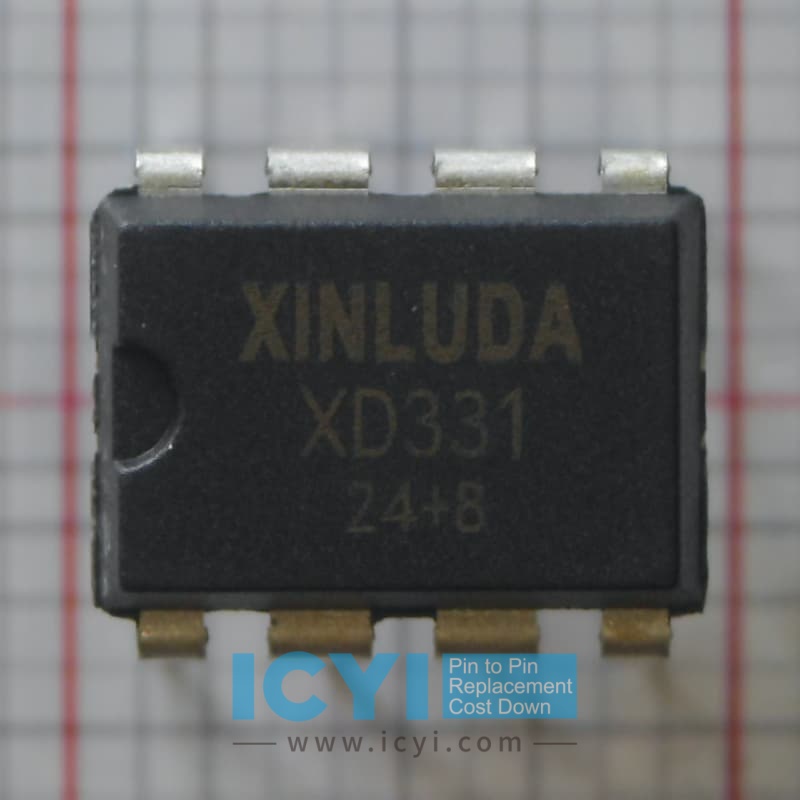

The XD331 from XINLUDA is a high-performance voltage-to-frequency converter designed for precision signal conversion in industrial, instrumentation, and measurement applications. When compared to the LM331N/NOPB and LM331AN/NOPB from Texas Instruments, the XD331 offers improved performance in key areas such as accuracy, temperature stability, and power efficiency. This comparison will explore the specific advantages of the XD331 over the LM331N/NOPB and LM331AN/NOPB, showcasing why it is the superior choice for precision applications.

Accuracy and Linearity

The XD331 is engineered to provide superior accuracy and linearity compared to the LM331N/NOPB and LM331AN/NOPB. While both LM331N and LM331AN offer good accuracy, the XD331 features an improved nonlinearity error of just 0.05%, significantly better than the LM331N's typical 0.2% and the LM331AN's 0.3%. This lower nonlinearity error makes the XD331 ideal for applications where precision is critical, such as in industrial measurement systems, where even small deviations in output frequency can lead to errors in the final measurements. The enhanced accuracy of the XD331 ensures better signal fidelity in frequency conversion tasks.

Temperature Stability and Drift

Temperature stability is a critical parameter for voltage-to-frequency converters, especially in industrial applications with wide temperature fluctuations. The XD331 offers significantly better temperature drift characteristics than both the LM331N and LM331AN. With a typical temperature coefficient of ±0.01%/°C, the XD331 outperforms the LM331N and LM331AN, which both have temperature coefficients around ±0.03%/°C. This enhanced temperature stability of the XD331 ensures consistent performance over a wide temperature range of -40°C to 85°C, making it ideal for outdoor, automotive, and industrial use cases where temperature extremes are common.

Power Consumption and Efficiency

Another significant advantage of the XD331 is its reduced power consumption compared to the LM331N/NOPB and LM331AN/NOPB. While the LM331N and LM331AN operate with a typical quiescent current of 300 µA, the XD331 operates with just 150 µA under similar conditions. This reduction in power consumption makes the XD331 ideal for battery-operated and low-power systems, extending battery life and reducing the need for heat management. In portable measurement devices, environmental sensors, and wireless communication systems, the lower power requirements of the XD331 provide a significant advantage over the competitors.

Output Frequency Range and Response Time

The XD331 offers a wider output frequency range and a faster response time compared to both the LM331N/NOPB and LM331AN/NOPB. While the LM331N and LM331AN have output frequency ranges typically extending from 0 Hz to 300 kHz, the XD331 extends this range up to 500 kHz, allowing for more flexible design options in high-speed applications. Additionally, the XD331 boasts a faster response time to input voltage changes, enabling faster conversion and more precise frequency outputs in real-time systems. This is particularly important in applications such as data acquisition, where quick response times are essential for accurate signal conversion.

Noise Performance and Immunity

The XD331 is designed with enhanced noise immunity, which is crucial for applications in environments with significant electromagnetic interference (EMI). The LM331N and LM331AN are standard in terms of noise performance, but the XD331 includes optimized internal circuitry that significantly reduces output noise and spurious signals. This makes the XD331 the better choice for applications that demand high precision in noisy environments, such as industrial automation systems, medical devices, and communication equipment. The improved noise performance ensures that the XD331 maintains signal integrity even in electrically noisy conditions.

Packaging and Integration

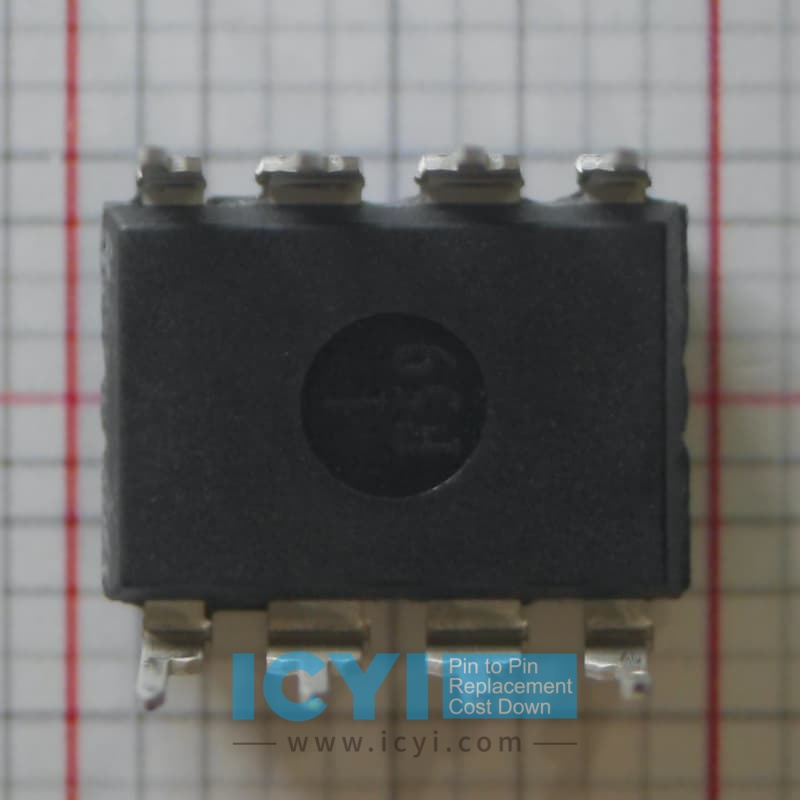

The XD331 offers greater flexibility in terms of packaging options, allowing customers to select the most suitable package for their application needs. The LM331N and LM331AN are available in standard DIP-8 and SOIC-8 packages, whereas the XD331 comes in both DIP-8, SOIC-8, and TSSOP-8 packages, offering more compact options for space-constrained designs. The availability of additional package options for the XD331 makes it easier to integrate into modern designs that require a more compact form factor, such as in portable or miniaturized systems.

Reliability and Longevity

The XD331 is built to deliver superior reliability and longevity, particularly in harsh environments. With enhanced over-voltage and over-current protection, the XD331 is better equipped to withstand transient voltage spikes and other stresses that can affect operational amplifiers and voltage-to-frequency converters. While the LM331N/NOPB and LM331AN/NOPB are durable, they may require additional external protection components in extreme conditions. The XD331's built-in protections reduce the need for extra components, simplifying system design and improving overall reliability, making it a more cost-effective and robust solution for critical applications.

Cost-Effectiveness and Value

Despite offering superior performance across multiple parameters, the XD331 is priced competitively with the LM331N/NOPB and LM331AN/NOPB, providing significant value for customers. The XD331 delivers enhanced accuracy, reduced power consumption, superior temperature stability, and better noise performance, all while maintaining a similar price point to the competitors. For customers seeking high-performance voltage-to-frequency conversion with minimal additional components and at a cost-effective price, the XD331 offers a compelling solution that provides better long-term value compared to the LM331N and LM331AN.

Conclusion

In conclusion, the XD331 from XINLUDA provides clear advantages over the LM331N/NOPB and LM331AN/NOPB in several key areas, including accuracy, power consumption, temperature stability, and noise immunity. Its superior performance, coupled with its lower power requirements and greater reliability, makes the XD331 an ideal choice for a wide range of precision applications. Whether you're designing industrial systems, medical devices, or portable measurement tools, the XD331 offers the enhanced features and long-term value needed to stay ahead in demanding environments.
