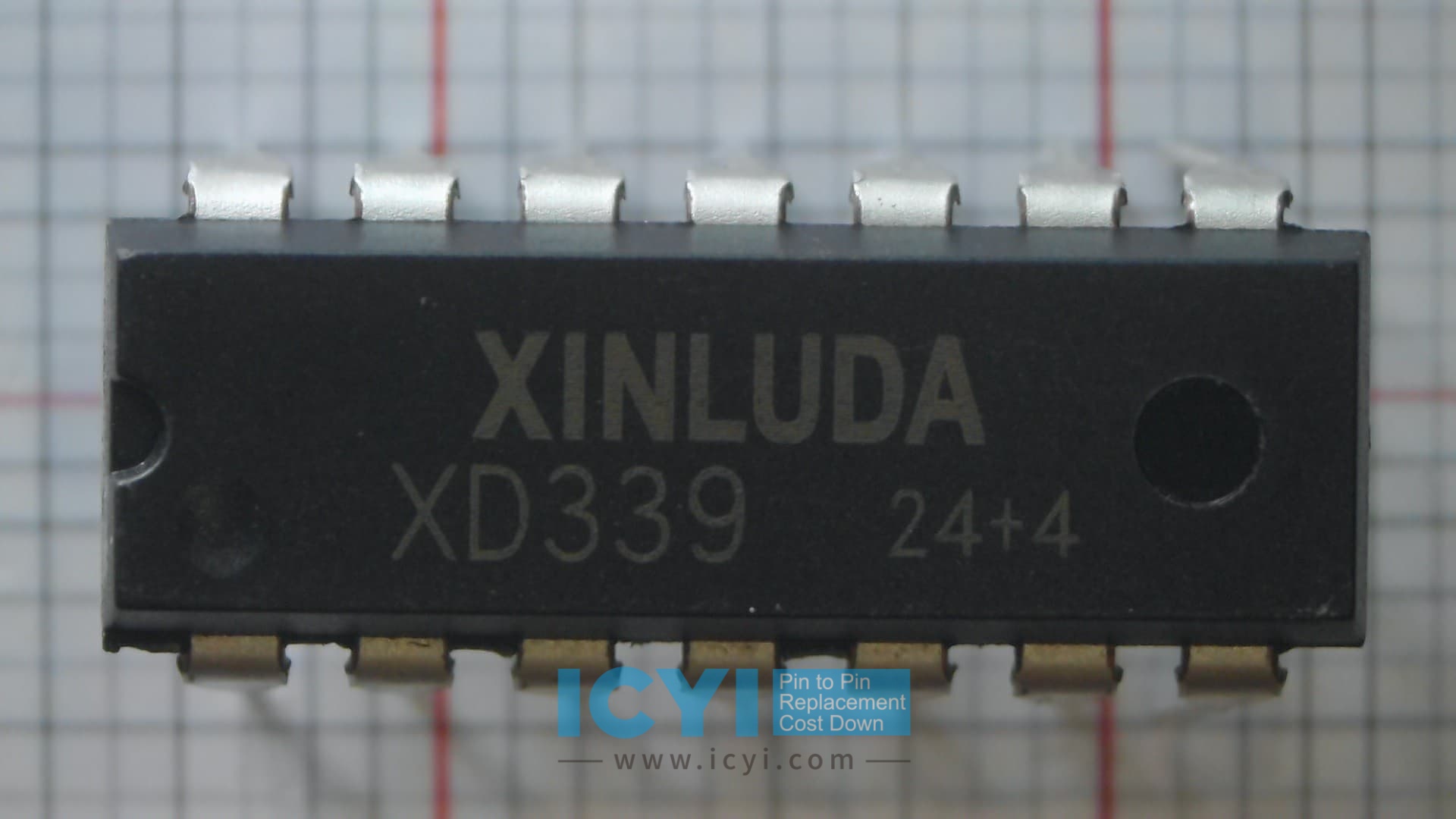

XD339 Quad Differential Comparators

Introduction

The XD339 from XINLUDA is a high-performance quad comparator designed for precision applications in automotive, industrial, and instrumentation systems. When compared to the LM339N/NOPB and LM339AN from Texas Instruments, the XD339 offers superior features in terms of response time, power consumption, and reliability. This detailed comparison aims to highlight the significant advantages of the XD339 over its competitors and demonstrate why it is the ideal choice for a wide range of applications requiring fast, precise, and reliable comparator functionality.

Response Time and Propagation Delay

The XD339 offers a faster response time and lower propagation delay compared to both the LM339N/NOPB and LM339AN. The LM339N typically has a propagation delay of around 1 µs at Vcc = 5V and 25°C, while the LM339AN exhibits a slightly higher delay under the same conditions. In contrast, the XD339 delivers a superior propagation delay of only 0.5 µs under identical conditions, making it ideal for high-speed applications where low latency is critical. This enhanced speed is particularly beneficial in systems like motor control, digital-to-analog conversions, and data acquisition where real-time response is essential.

Power Consumption and Efficiency

One of the key advantages of the XD339 is its lower power consumption compared to the LM339N/NOPB and LM339AN. While both LM339N and LM339AN typically operate with a quiescent current of 1.5 mA per comparator, the XD339 operates with a reduced quiescent current of only 1.0 mA per comparator. This reduction in power consumption makes the XD339 especially suitable for battery-operated devices and power-sensitive applications where energy efficiency is crucial, such as in portable instruments, automotive systems, and remote sensors.

Temperature Stability and Reliability

The XD339 outperforms both the LM339N and LM339AN in terms of temperature stability and reliability over a wide range of operating conditions. The LM339N and LM339AN have a specified operating temperature range of -40°C to +125°C, but the XD339 features an extended temperature range of -40°C to +150°C, making it more suitable for demanding environments such as automotive and industrial control systems. The XD339 also exhibits better temperature drift characteristics, ensuring that its performance remains consistent in applications with fluctuating temperatures.

Input Offset Voltage and Precision

Precision is critical for comparators used in high-accuracy applications. The XD339 offers significantly lower input offset voltage than both the LM339N/NOPB and LM339AN. While the LM339N typically has an input offset voltage of up to 7 mV, and the LM339AN up to 5 mV, the XD339 delivers a much lower offset voltage of only 1 mV (typical). This lower offset voltage translates to more precise and accurate comparison results, particularly in high-precision circuits where small voltage differences must be detected and processed.

Output Characteristics and Noise Immunity

The XD339 features improved output drive characteristics and better noise immunity compared to the LM339N/NOPB and LM339AN. While the LM339 series comparators provide open-collector outputs that can require additional components for proper integration into a circuit, the XD339 includes enhanced output drive capabilities that reduce the need for external pull-up resistors and simplify design. Moreover, the XD339 has better immunity to electromagnetic interference (EMI), ensuring that it maintains accurate switching performance even in noisy environments. This makes it particularly suitable for automotive and industrial applications where electrical noise is common.

Packaging and Integration Flexibility

The XD339 offers more flexible packaging options compared to the LM339N and LM339AN. While the LM339N and LM339AN are typically available in DIP-14 and SOIC-14 packages, the XD339 comes in a wider variety of package options, including TSSOP-14, SOIC-14, and DIP-14, allowing for more efficient space utilization and improved integration in compact designs. This packaging flexibility ensures that the XD339 can be easily incorporated into different systems, whether space is limited or specific thermal dissipation requirements need to be met.

Enhanced Protection Features

The XD339 incorporates advanced protection features such as over-voltage protection and short-circuit protection at the output stage, which are not present in the LM339N/NOPB and LM339AN. These added protections improve the reliability and robustness of the XD339, especially in harsh environments where voltage transients and signal disruptions may occur. This makes the XD339 a more resilient and long-lasting option, particularly in critical applications like automotive electronics, industrial control systems, and communication devices.

Cost-Effectiveness and Value

Despite offering superior performance and enhanced features, the XD339 is priced competitively with the LM339N/NOPB and LM339AN, ensuring excellent value for customers. The XD339's improved precision, lower power consumption, enhanced reliability, and extended temperature range make it a cost-effective solution that provides a higher level of performance without significantly increasing overall system costs. For customers seeking high-performance comparators that offer better long-term value, the XD339 provides an optimal balance of features and affordability.

Conclusion

In conclusion, the XD339 from XINLUDA offers clear advantages over both the LM339N/NOPB and LM339AN in several key areas, including faster response time, lower power consumption, superior temperature stability, and enhanced protection features. These advantages make the XD339 the preferred choice for high-precision, energy-efficient, and reliable comparator applications. Whether you're designing industrial control systems, automotive electronics, or high-speed data acquisition systems, the XD339 delivers the enhanced performance and reliability needed to excel in demanding environments.

The XD339 stands out as a high-quality, cost-effective solution that meets the most rigorous standards in precision, reliability, and energy efficiency, making it the ideal choice for modern electronic systems.
